Cryogenic Lift Check Valves

Simplex Turbulo is the authorised distributor and global service station for Parker's full range of Bestobell Cryogenic Valves.

Parker Bestobell is one of the world's leading designers and manufacturers of reliable, high-performance cryogenic valves for marine and industrial installations.


Cryogenic Lift Check Valves

DN25-DN200


The Parker Bestobell range stainless steel lift check valves have been designed to reduce leakage across the seat, maximise lifetime operation and reduce maintenance and spares cost for ship operators, whilst providing full compliance with Class requirements.

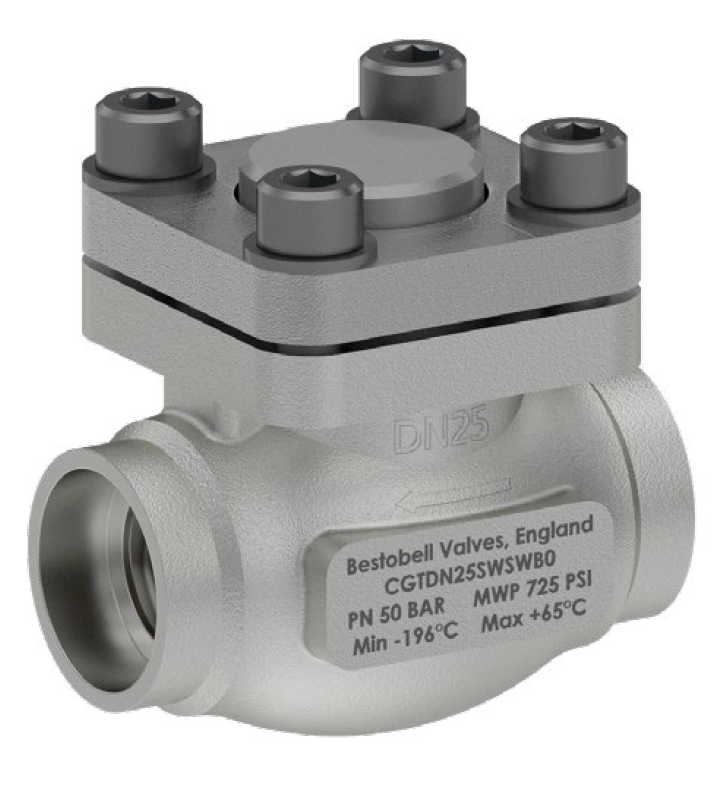

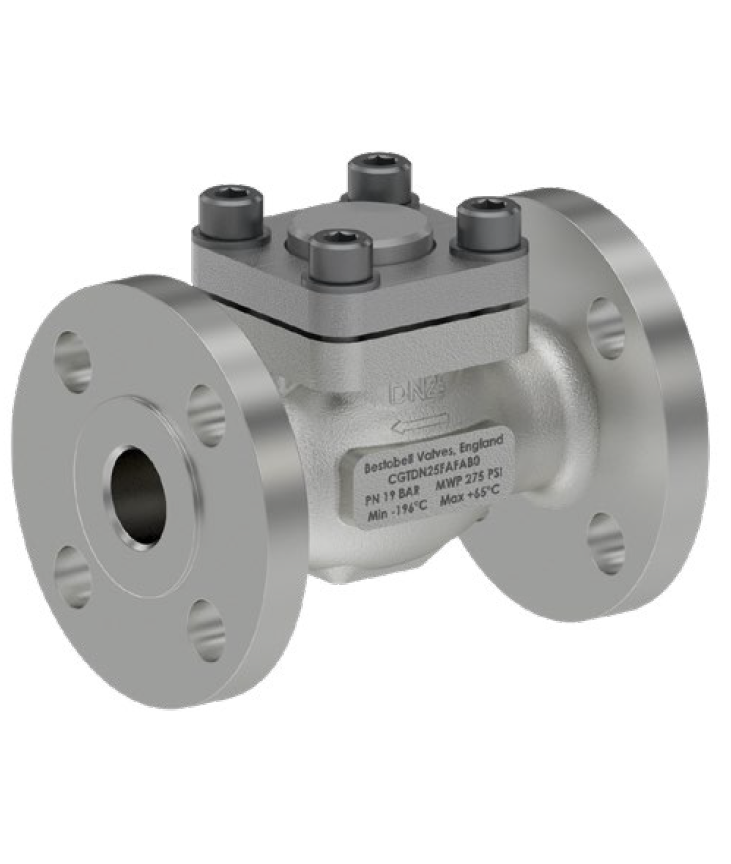

The valve range is available with either butt weld or flanged options designed to ANSI standards, and designed to prevent back flow in LNG systems. Both the valve disc and the metal seat have a final lapped finish to provide the excellent sealing properties across the seat.

The bolted bonnet headworks provides for quick and easy access for maintenance and servicing of the valves.


Sales Contact

Mariana La Rocca
Business Development, Parker

+44 7421 883 667

mlarocca@simplexturbulo.com

Technical Contact

Lee Pino
Service Manager

+44 7881 265 461

lpino@simplexturbulo.com

Regional Contact

Find Your Regional Account Manager

Use our interactive global network map

No English?

Cryogenic Lift Check Valves

Features

  • Designed and manufactured for use on LNG carriers, FSRU & FLNG and LNG fuel systems in accordance with BS6364
  • Full range of Class150 stainless steel swing check valves. Class 300 available for sizes up to DN100
  • Firesafe all metal seat design
  • Lapped valve disc and seat
  • Bolted bonnet headworks
  • Firesafe graphite gasket
  • Laser etched nameplates


Technical

  • Full material traceability backed by BS EN 10204 3.1/3.2 certification
  • Temperature range -196°C to + 80°C
  • Available in Butt Weld (ANSI b16.25) and Flange (ANSI B16.5) connections
  • Shell wall thickness in accordance with ANSI B16.34
  • 316 Stainless Steel construction for marine applications
  • Fire safe approved to BS EN ISO 10497:2004 & ANSI/API Standard 607 fifth edition June 2005
  • Full 3.2 certification to meet Class requirements
