Cryogenic Swing Check Valves

Simplex Turbulo is the authorised distributor and global service station for Parker's full range of Bestobell Cryogenic Valves.

Parker Bestobell is one of the world's leading designers and manufacturers of reliable, high-performance cryogenic valves for marine and industrial installations.

Cryogenic Swing Check Valves

DN25-DN350

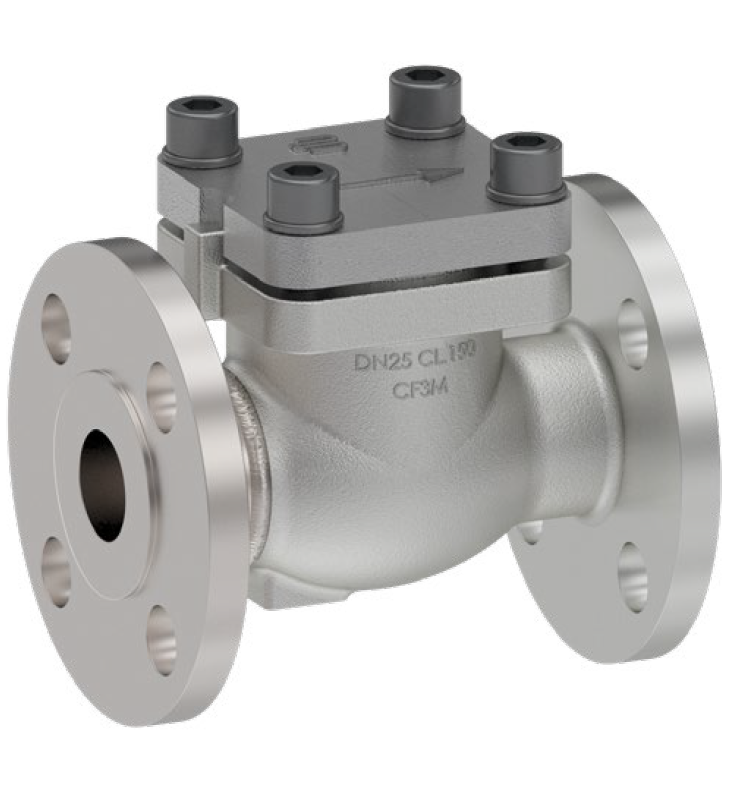

Stainless Steel Swing Check Valve with bolted bonnet. Available with flanged end connections, with easy access to the serviceable parts of the valve.

The valves are designed and manufactured for use with LNG, LPG and other flammable gas services. Loose bolted bonnet design allows for thermal expansion and contraction and eliminates leakage at the bonnet gasket.

Sales Contact

Mariana La Rocca
Business Development, Parker

+44 7421 883 667

mlarocca@simplexturbulo.com

Technical Contact

Lee Pino
Service Manager

+44 7881 265 461

lpino@simplexturbulo.com

Regional Contact

Find Your Regional Account Manager

Use our interactive global network map

No English?

Cryogenic Swing Check Valves

Features

316 Stainless Steel construction for marine applications
Internal hinge design
PTFE seal ensures a tight shut off
Quick removal of headworks allow fast, easy maintenance
Temperature range -196°C to + 80°C
Fire safe approved to BS EN ISO 10497:2004
ISO 9001 accreditation
General design in accordance with BS6364

Technical

Full material traceability backed by BS EN 10204 3.1/3.2 certification
Temperature range -196°C to + 80°C
Available in Butt Weld (ANSI B16.25) and Flange (ANSI B16.5) connections
Shell wall thickness in accordance with ANSI B16.34
316 Stainless Steel construction for marine applications
Fire safe approved to BS EN ISO 10497:2004
Full 3.2 certification to meet Class requirements
